4 units in a carton, the carton size is 650*490*236MM
the carton G.W is4.5KGS
Flyingvoice low cost terminal phone adapter with 16 lines
• 2 100/1000M RJ45 port(1 WAN, 1 LAN) • 16 FXS RJ11 ports • Real time FAX over IP via T.38 and T.30 FAX with G.711 • PAMS is above 4.0 with G.729 Codec • Field proven compatibility and stability • Auto-Provisioning-TFTP/HTTP/HTTPS • TR069, SNMP.
A powerful VoIP Analog Telephone Adapter with Router function

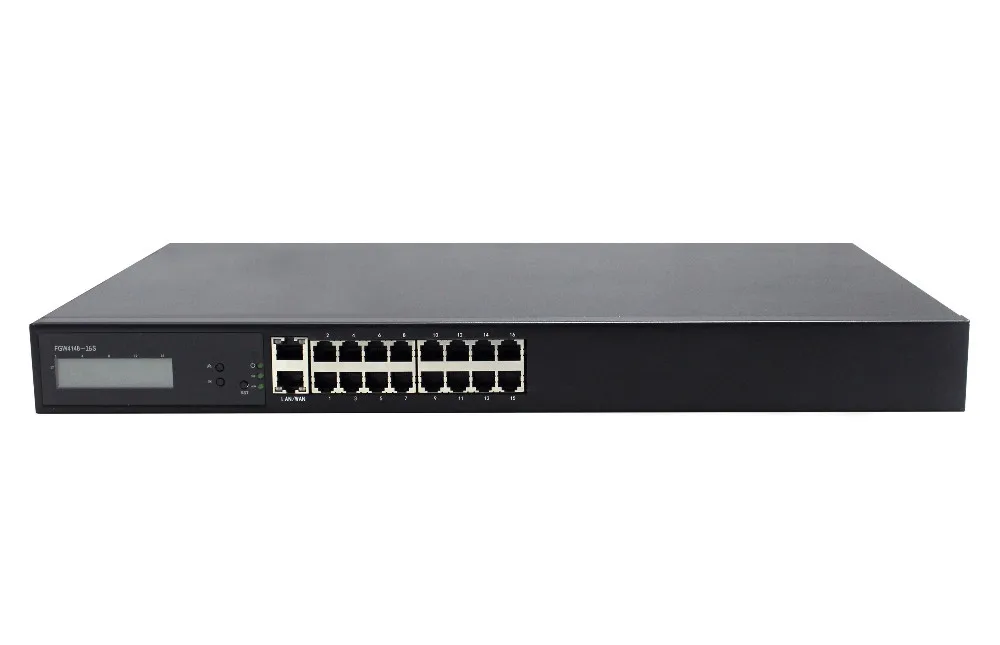

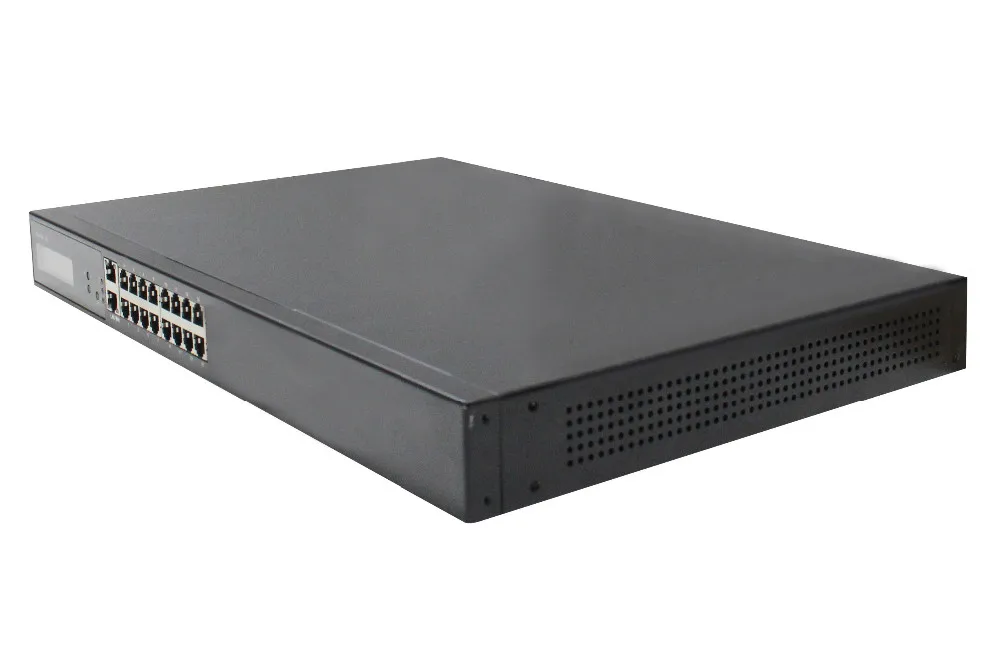

FGW4148-16S, which has 16 FXS ports , one LAN port and one WAN port, is one of the most popular VoIP ATAs researched and produced by FlyingVoice. This product can not only provide four SIP lines for users to make calls, but also it is a wire-speed NAT router, make you enjoy easy network atmosphere. What's more, G504 support T.38 real time FAX and T.30 FAX with G.711.
FGW4148-16S, is a stand-alone device, which requires no PC to make Internet calls. This ATA guarantees clear and reliable voice quality on Internet, which is fully compatible with SIP industry standard and able to interoperate with many other SIP devices and software on the market.
1 10/100/1000Mbps LAN port
1 10/100/1000Mbps WAN port
16 FXS ports
1 Power set
AC Input : 100-240v, 50-60Hz; DC Output: 5V, 2A
400mm (L) x 280mm (W) x 44.5mm (H)
Operation Temperature: 5~45 Degree C
Storage Temperature: -25~85 Degree C
Relatively Humidity: 10%~90% No Condensing
Shock: Up to 75cm Drop upon package
Audio Codec Features
G.711(A-law, u-Law)with PAMS above 4.3
G.729A/AB with PAMS above 4.0
Adaptive Jitter Buffer Management
Voice Activity Detection
Comfort Noise Generation
T.30 FAX with G.711
Real time FAX over IP via T.38
SIP V2 (RFC 3261,3262,3263,3264)
Backward Compatible with RFC2543
Session Timer (RFC4028)
RTP/RTCP (RFC1889 and RFC1890)
NAPTR for SIP URI Lookup (RFC2915)
STUN (RFC 3489)
ARP/RARP (RFC 826/903)
SNTP (RFC 2030)
HTTP Server for Web Management
TFTP/HTTP/HTTPS for Auto Provisioning
DNS/DNS SRV (RFC1706 and RFC 2782)
Web Management Interface
IVR-driven Management Interface
Local and Remote Syslog (RFC3164)
SNTP Time Synchronization
Multiple User Level
Music on hold
DTMF Relay: In-band, Out-band and SIP INFO
Caller ID and CWCID
Real time fax over IP via T.38
T.30 FAX with G.711
Flyingvoice Technology Co., Ltd. is the leading company for VoIP CPE products in China. We have involved in VoIP products design and manufacture since 2007. We provide innovative and reliable VoIP products such as VoIP Analog Telephone Adapter (ATA), IP Phone, VoIP Gateway, Wireless Router with VoIP product, Wi-Fi SIP phone, and embedded IP-PBX.
IT EXPO 2016 in USA
ITEXPO is a professional exhibition in comumication industry that provide the latest and the most comprehensive communication solutions and products for enterprise, distributors and service providers. Also, it is known as one of the world's most professional ICT show.
Communic Asia 2016 in Singapore
Recognised as Asia's largest integrated info-communications technology event, 48,701 local and international attendees were given the opportunity to connect and network throughout the 4 days.
2016 CeBIT in Germany
CeBIT is one of the biggest and the most advance ICT exhibition in the world, CeBIT completely showcase the latest Innovations from digital IC, home and communications solutions.
our Main Customer
Long term cooperation
Our VoIP CPE products get wide range applications in all over the world, especially in the carrier market. Our main customers include KT, SKT, KCT, Rostelecom Russia, SATINTERNET, Telefónica, Telecom Italia, China Mobile, and so on.
From 2008, we became and kt the No.1 ATA provider in Korea carrier market.

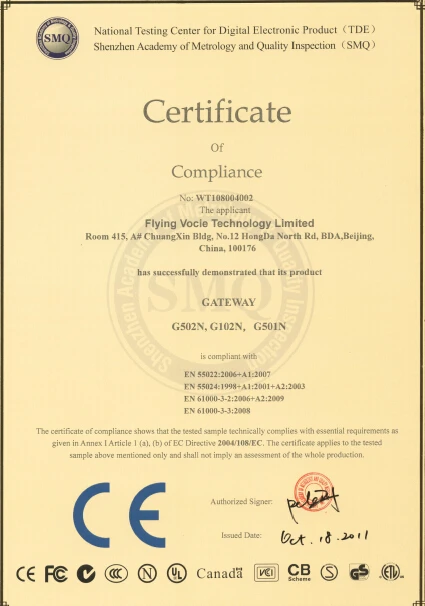

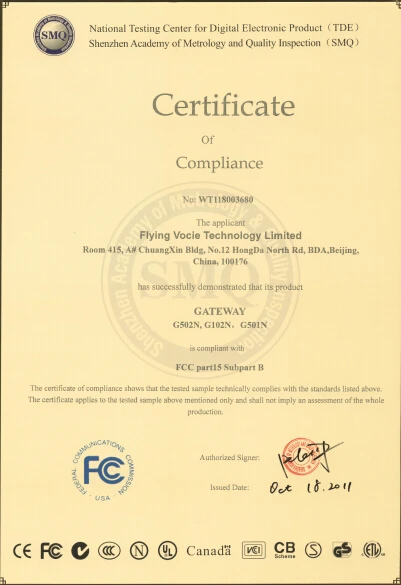

All products have passed the telecom carrier-grade BMT test which including environment, function and field test. And each model has been engineered to provide a complete set of features required for a majority of soft switch platform or IP-PBX. Also, all our items got CE&FCC,UL and ROHS certificated, expecially, G502N ATA got C-TICK certificated.
Payment & Delivery
we can accept kinds of payment,like Western union / paypal, T/T.
for large order, L/C is also avaiable. for sample order,
Paypal will be adviced.
we hope find best shipping way for our customer.
for sample order, DHL, TNT etc will be advised. for large order ,Cargo or air shipping will be advised. also,Customer can choose their own shipping agent.
Portable Wireless VOIP Phone-FIP16
Portable Wireless VoIP Adapter - FTA1101
4FXS Port Phone Adapter G504
1,What is the MOQ?
There is no MOQ. any quantity is ok. your trial order or sample order are both highly welcomed!
2, why choose Flyingvoice?
a, A great manufacture with ISO9000 certificated.
b,all items comply with CE&FCC,ROHS.UL.etc.
c,competitive price+stable quality+best services.
3, how to order?
Kindly share your need with us by email, telephone,skype,wechat,whatsapp.QQ,etc.
